Today, we’re going to take a look at the AMD Radeon RX 5700 graphics card. In essence, the more affordable version of the RX 5700 XT, which has received quite a lot of positive feedback.

The second of AMD’s Navi 10 GPUs the RX 5700 is a direct competition of the RTX 2060. Following the trend, it’s basically the XT with less compute units, less GPU cores, a slower boost clock, and costs $50 cheaper. Here in the Philippines, the 5700 XT retails for around PhP24,000, while the 5700 is priced at around PhP20,000.

Hopefully with our tests, we’ll be able to answer the question, is it worth getting this one over the XT? or is it better to just hold your purchase, save up, and just buy its more powerful sibling?

Design

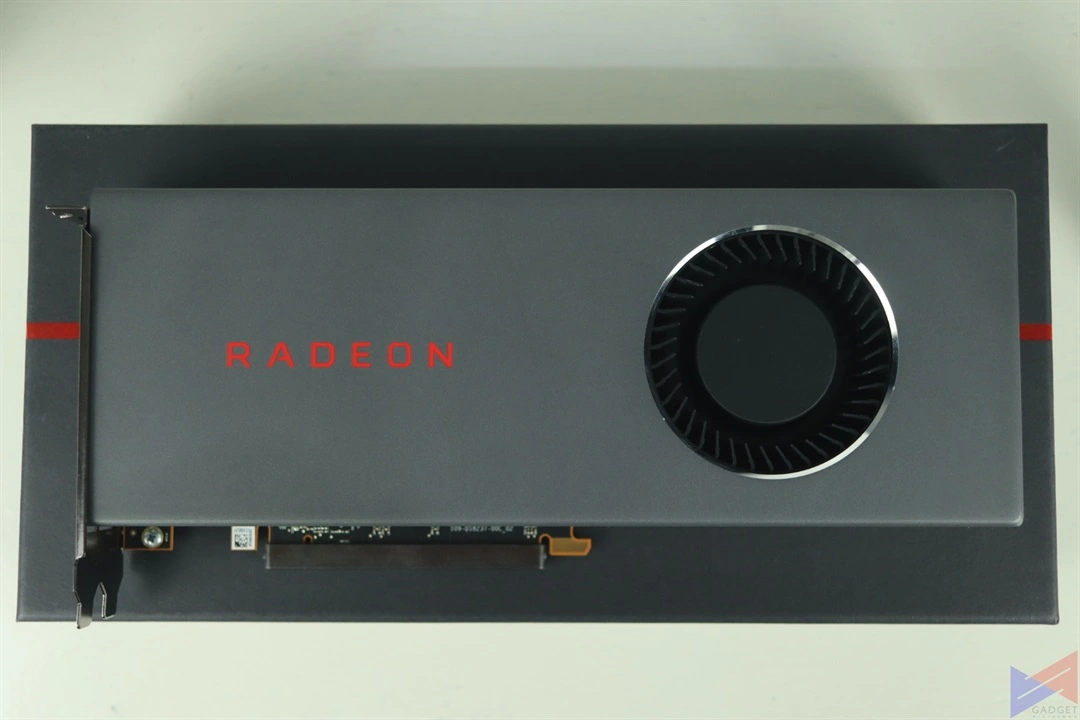

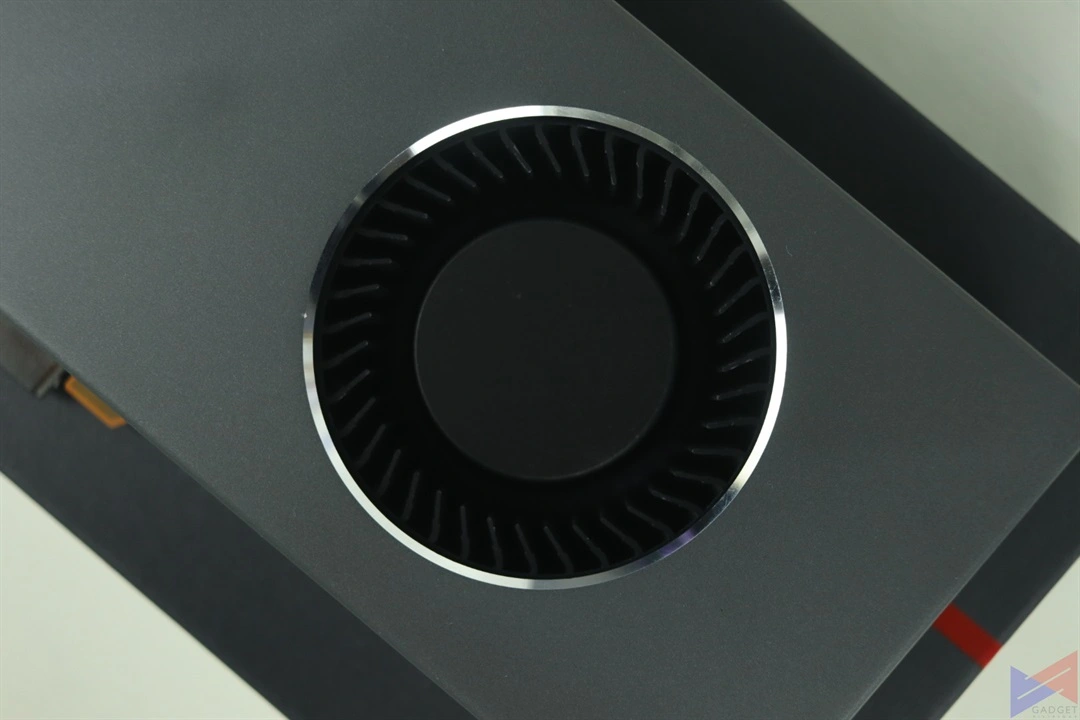

The reference model of the RX 5700 uses a single blower-type cooler, with all of its component housed in a black casing with a very minimal design – just the Radeon branding and that’s it. Of course, custom cards can have more fans and other features.

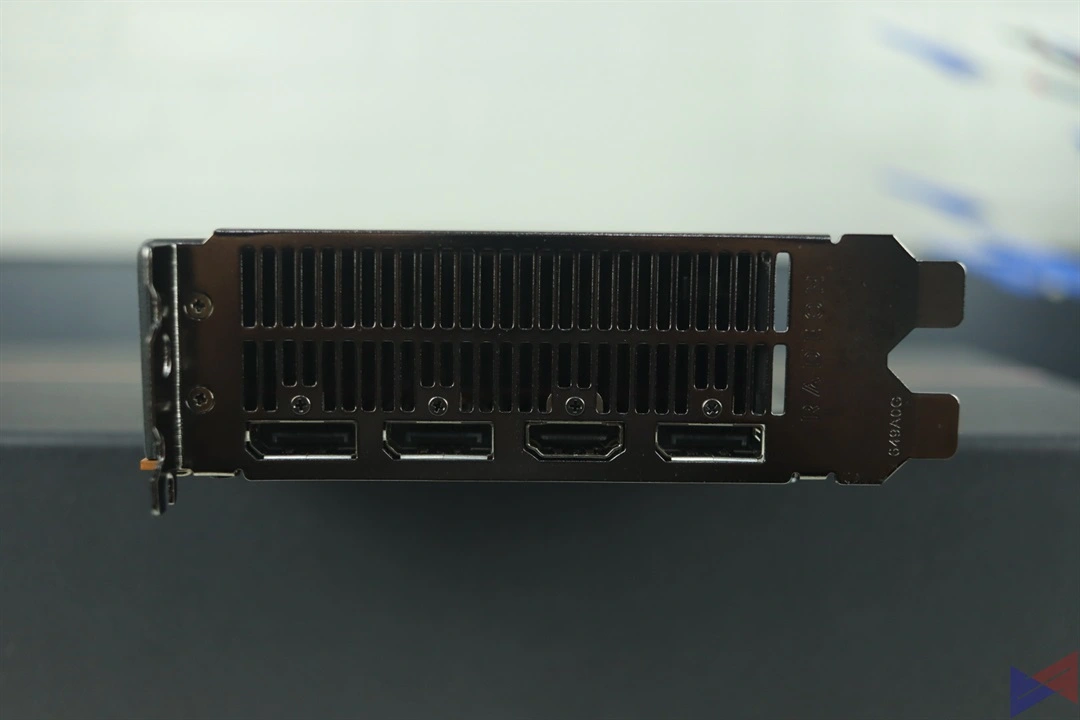

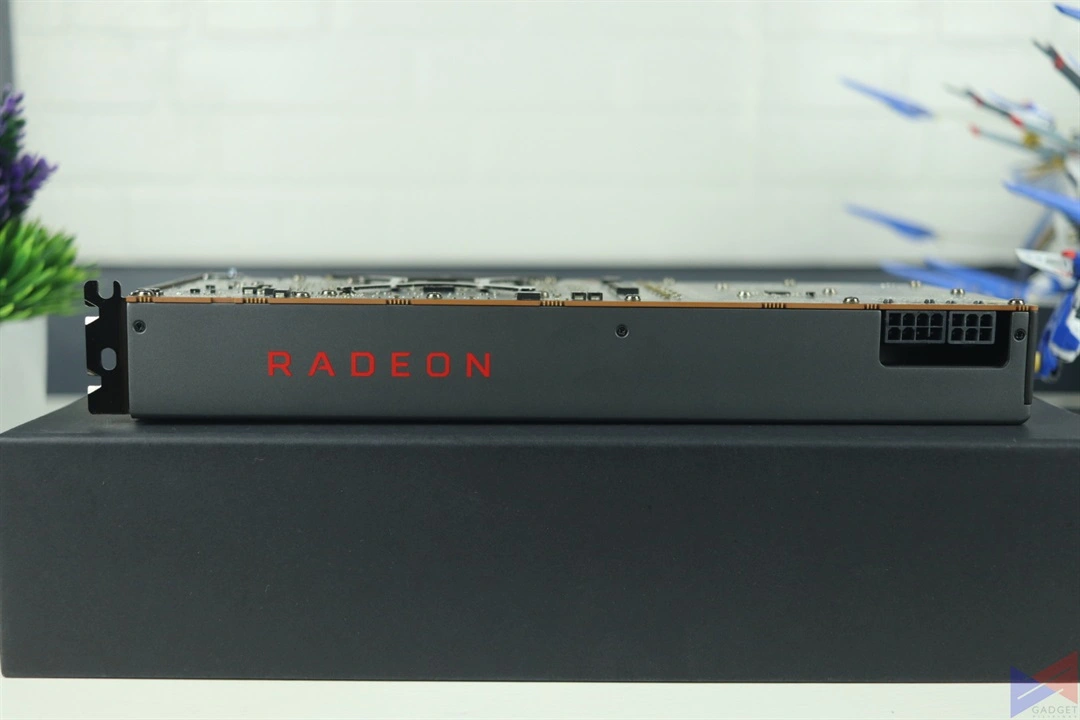

As far as ports are concerned, you get three DisplayPorts and a single HDMI port. Of course, this may vary for other variations of this card. To power it up, you’ll need an 8-pin and a 6-pin connector.

Performance – Benchmarks
3DMark
Run 1 Run 2 Run 3
Time Spy 6274 6254 6232
Time Spy Extreme 2823 2816 2815
Fire Strike 13965 13930 13968
Firs Strike Ultra 4936 4938 4916
Fire Strike Extreme 8851 8887 8854
Sky Diver 24928 24855 24722



The RX 5700 scored pretty well in most of 3DMark’s lineup of benchmarks, beating 61% of other results for Time Spy, 72% on Fire Strike, 71% on Fire Strike Extreme and 82% on Sky Diver.

Gaming Benchmarks

We tested the card with some games, ranging from a fast-paced shooter (PUBG), a racing game (Project: Cars), a horror game (RE2 Remake), and two RPGs (Rise of the Tomb Raider and the Witcher 3), to see how it would fare.

We used FRAPS to measure minimum and average FPS at 1920 x 1080 resolution, with V-Sync OFF.

You may be worried about that minimum FPS, but don’t worry, it runs PUBG like hot knife cutting through butter.
Though challenged in some instances, the RX 5700 still outs an average of more than 100 FPS
This in-game benchmark may be the most demanding of the three, as shown by the minimum FPS. Still you get more than 60 FPS on average
Another demanding in-game benchmark, the RX 5700 shows a bit of struggle in some instances, but is still able to deliver more than 60 FPS on average
Still one of the most beautiful looking games out there, the RX 5700 runs the Witcher 3 at more than 60 FPS average, and never dropped below that during our test
Project Cars’ visually stunning vehicle details and environment didn’t pose much threat to the RX 5700
This game is well-optimized, even for slower systems, so it’s not surprising that the RX 5700 doesn’t break a sweat, and runs it at more than 100 FPS on average
Thermal Performance

The RX 5700 delivers good thermals despite only having a single cooler, peaking at less than 80°  in all of the games we tested it on.

Software

Radeon Software Adrenalin Edition offers a clean and straightforward  interface, and gives you a slew of features to play with.

For one, it tells you whether your system meets the recommended specifications for currently installed games, and allows you to adjust certain settings for each game.

It also gives you the ability to monitor and log actual performance metrics using a simple overlay. To enhance the overall quality of video content, you can even choose from a variety of presets. Radeon ReLive on the other hand, lets you record and stream your gameplay.

Lastly, you’ll be able to view both system and software information in a dedicated tab.

AMD Radeon RX 5700 Review
Our Verdict
The AMD Radeon RX 5700 offers great performance for 1080p gaming across every game we threw at it. For a reference design card, it also delivered better thermal performance than we expected. Despite that however, we think that the price gap between this card and the more capable 5700 XT is just too close. So if your budget only allows for this card and you're really in need of a good 1080p gaming solution, yes, this one's a good choice. But if you have time to save a bit more, the 5700 XT does offer better value overall.
What's Good
Great performance at 1080p
Feature-Packed Software
Good thermal management
What's Not
For a bit more, you can get the RX 5700 XT, which offers better value
