Colorful is the first one to unveil its next-generation Intel motherboards running the Z590 and B560 chipsets. Both motherboards feature a white color theme which is ideal for all-white gaming PC builds. The iGame Z590 Vulcan W and VCN B560M Frozen V20 aim to complement Colorful’s Ultra White Series RTX 30 graphics cards.

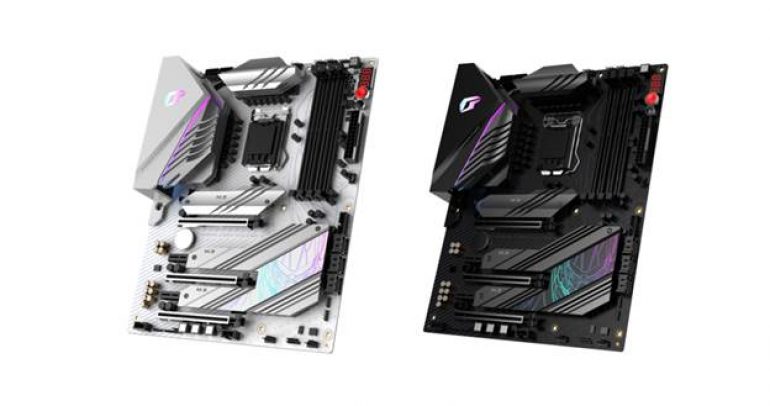

Colorful iGame Z590 Vulcan W and iGame Z590 Vulcan X
The Colorful iGame Z590 Vulcan W and iGame Z590 Vulcan X motherboards come with the same specs and feature set with the only exception being its color. Both feature a very eye-catching “Vultune” design with ARGB lighting on the PCHB heatsink. The extended PCH heatsink delivers efficient heat dissipation for the Z590 chipset as well as two M.2 SSDs. Additional RGB can be also found on the I/O shroud and VRM heatsink.
Built for Intel’s latest 11th Gen processors, both the iGame Z590 Vulcan W and Vulcan X support PCI-E 4.0. The top M.2 slot also supports PCI-E Gen 4.0 for highspeed Gen4 NVMe SSDs while the remaining two M.2 slots are PCI-E Gen 3 with Intel Optane support. Lastly, both motherboards are equipped with Intel’s latest Wi-Fi 6 wireless solution and Intel’s 2.5GbE networking.
Colorful iGame Z590 Vulcan W and iGame Z590 Vulcan X Specs
| Model | iGame Z590 Vulcan X / iGame Z590 Vulcan W |
| Color | Black/White |
| CPU Support | Intel® 10th / 11th Generation Core™ Processor |
| Chipset | Intel Z590 |
| Power Phase Design | 14+2 Power Phase |
| Memory Support | 4x DDR4 DIMM Socket Dual-Channel DDR4 |
| Expansion Slots | 2x PCIe 4.0 x16 (x8+x8) 1x PCIe 3.0 x4 3x PCIe 3.0 x1 |
| Storage | 6x SATA III 6Gbps 3x M.2 (1x PCIe 4.0 x4, 2x PCIe 3.0 x4 with Intel Optane Support) |
| Networking | Intel I225V 2.5GbE LAN Wi-Fi 6 Wireless |
| Front I/O Connectors | 1x USB 3.2 Gen1 header, Support 2Ports 2x USB 2.0 header, Support 4 Ports 1x USB 3.2 Gen2 Type-C header, Support 1Port |
| Rear I/O | 1x USB 3.2 Gen2x2 Type-C port 4x USB 3.2 Gen1 3x USB 3.2 Gen2 1x HDMI 1x DisplayPort 1x Audio (Line-in, Line-out, MIC) 1x RJ45 LAN port |
| Audio | 8-Channel High-Definition audio CODEC |
| Motherboard Dimensions | ATX (305×244 mm) |
Colorful CVN B560M Gaming Frozen V20
The Colorful B560M Gaming Frozen V20 is also a white-colored motherboard albeit in an mATX form factor. The CVN B560M Gaming Frozen V20 motherboard, despite having a B560 chipset, does not compromise on specs and features as it sports a 10+2 power phase design paired with PCI-E Gen 4.0 support for that latest generation of graphics cards and NVMe SSDs. The motherboard also uses an extended heatsink on the PCH and VRM for aggressive passive cooling. Moreover, it also supports ARGB lighting on the side. Build Quality-wise, the CVN B560M Gaming Frozen V20 features a pre-installed I/o shield, steel-reinforced PCI-E x16 slots, and 90-degree SATA 3.0 ports.
Colorful CVN B560M Gaming Frozen V20 Specs
| Model | CVN B560M GAMING FROZEN V20 |
| Color | White |
| CPU Support | Intel® 10th / 11th Generation Core™ Processor |
| Chipset | Intel B560 |
| Power Phase Design | 10+2 Power Phase |
| Memory Support | 4*DDR4 DIMM Socket Dual-channel DDR4 3200/2933/2666/2400 Memory |
| Expansion Slots | 1x PCIe 4.0 x16 1x PCIe 3.0 x4 3x PCIe 3.0 x1 |
| Storage | 6x SATA III 6Gbps 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x4 with Intel Optane Support) |
| Networking | Intel I225V Gbit LAN 1x M.2 2230 WIFI/BT |
| Front I/O Connectors | 1x USB 3.2 Gen1 header, Support 2 Ports 1x USB 2.0 header, Support 4 Ports |
| Rear I/O | 1x PS/2 keyboard+mouse combo 2x USB 3.2 Gen2 (1xType-C port, 1xUSB) 2x USB 3.2 Gen1 2x USB 2.0 1x HDMI 1x DisplayPort 1x Audio (Line-in, Line-out, MIC) 1x RJ45 LAN port |
| Audio | 8-Channel High-Definition audio CODEC |
| Motherboard Dimensions | Micro-ATX (245×245 mm) |
Colorful also announced Battle-AX variants for its motherboards which also support both PCI-E Gen 4 graphics as well as Gen 4 NVMe SSDs.
ATX
- CVN Z590 GAMING PRO V20
- CVN Z590 GAMING FROZEN V20
- CVN B560 GAMING PRO V20
- CVN B560 GAMING FROZEN V20
- Micro-ATX
CVN Z590M GAMING PRO V20 - CVN Z590M GAMING FROZEN V20
- CVN B560M GAMING PRO V20
- CVN B560M GAMING FROZEN V20
- BATTLE-AX Z590M GAMING V20
- BATTLE-AX B560M GAMING V20
- BATTLE-AX H510M-M.2 PRO V20
