Kingston NV1 M.2 NVMe PCIe Solid State Drive (1TB) Quick Review

Contents (maximize to view)

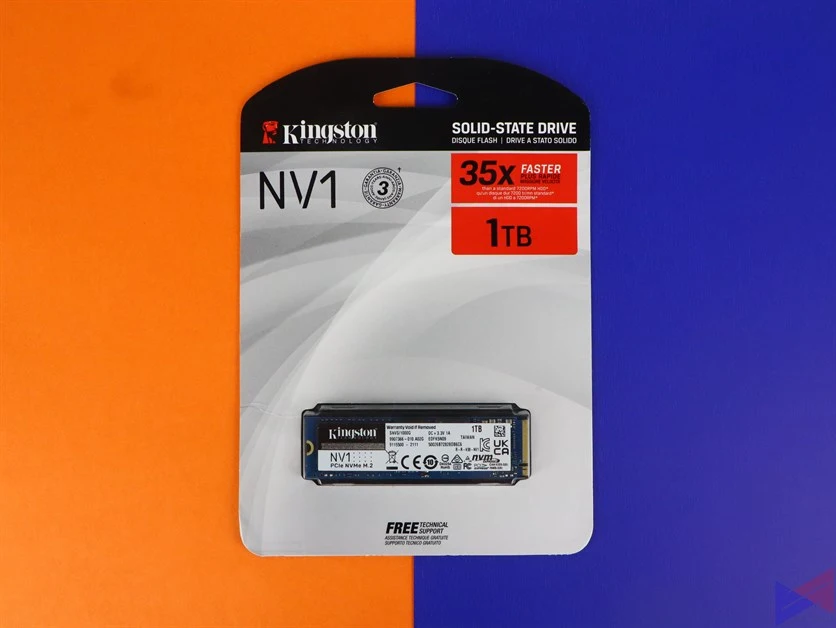

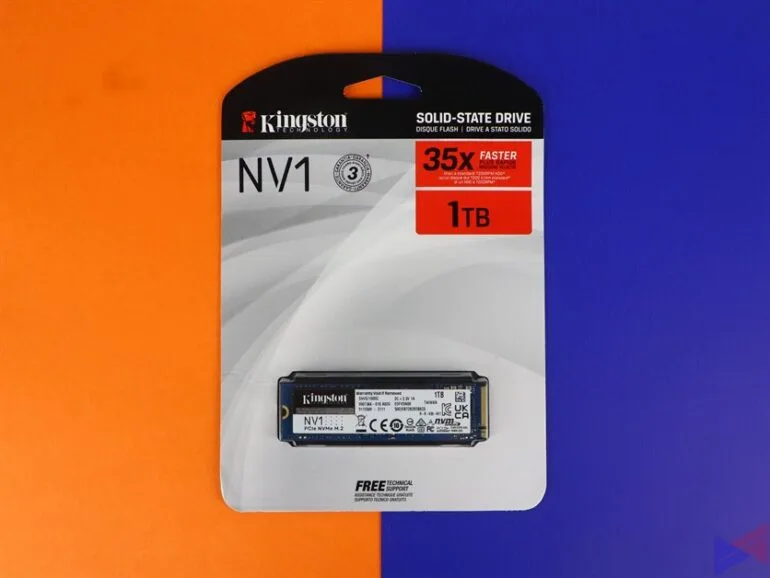

Kingston NV1 Review (3)

Kingston recently launched the NV1 – a new entry-level M.2 SSD for first-time NVMe users with laptops and small form-factor PCs. s With read and write speeds of up to 2,100/1,700MB/s respectively, it outperforms a SATA type SSD by up to three times. The brand claims that it also uses less power, runs cooler, and offers quicker load times.

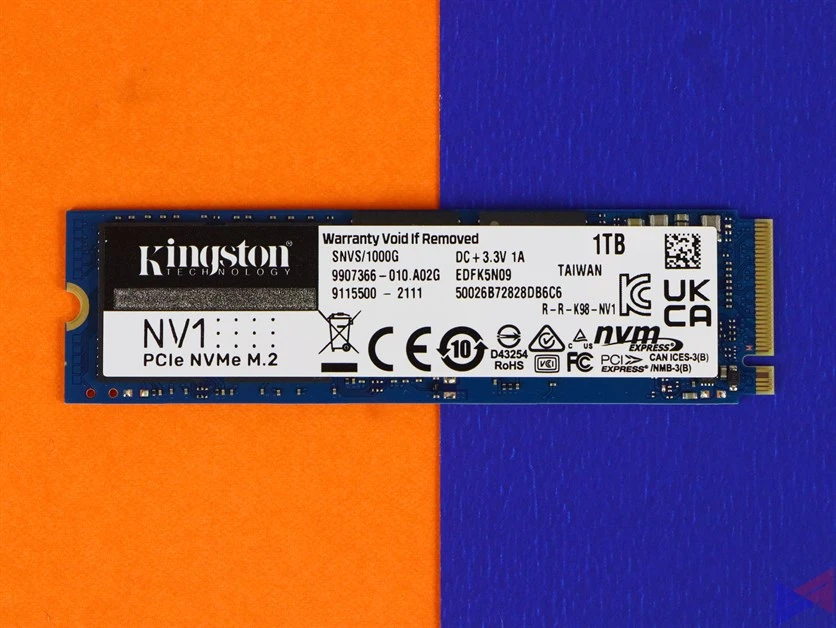

Kingston NV1 Review (7)

To find out if these are all true, we pitted the 1TB variant of the NV1 against a bunch of other SSDs in a series of tests, to see if this one can deliver good performance for its price.

Kingston NV1 Specifications

Read/Write SpeedsUp to 2,100/1,700MB/s (all capacities)
Ideal forThin laptops and small form factor PCs
Capacities500GB, 1TB, 2TB
Form FactorM.2 2280
InterfaceNVMe PCIe Gen 3.0 x 4 Lanes
Endurance500GB – 120TBW
1TB – 240TBW
2TB – 480TBW
Power Consumption500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
1000GB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
2000GB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature-40°C~85°C
Operating Temperature0°C~70°C
Dimensions22mm x 80mm x 2.1mm
Weight7g (All capacities)
Vibration Operating2.17G (7-800Hz)
Vibration Non-operating20G (20-1000Hz)
Warranty/SupportLimited 3-year warranty with free technical support

Kingston NV1 Pricing

ProductCapacityMSRP
SNVS/500G500GBP3,050
SNVS/1000G1TBP5,475
SNVS/2000G2TBP10,550

Test System

  • Processor: AMD Ryzen 7 3700X
  • Cooler: ASUS ROG Strix LC 240 AIO
  • Motherboard: ASUS TUF Gaming X570 Plus
  • RAM: 16GB TForce Nighthawk 3200MHz CL16
  • Storage: 1TB Kingston NV1 M.2 NVMe PCIe SSD , 1TB Seagate 7200RPM HDD, Kingston KC600 512GB SATA3 SSD, Kingston KC2500 M.2 NVMe PCIe SSD
  • PSU: Seasonic Prime 750W 80+ Gold
  • GPU: Colorful RTX 3080 Ultra OC
  • OS: Windows 10 20H2 Build 19042.985

Benchmarks

CrystalDiskMark

CrystalDiskMark test how fast files can be read from and written to a storage device.

Kingston NV1 - CDM SEQ1M Q8T1 1GB
CDM SEQ1M Q8T1 1GB
Kingston NV1 - CDM SEQ1M Q8T1 16GB
CDM SEQ1M Q8T1 16GB

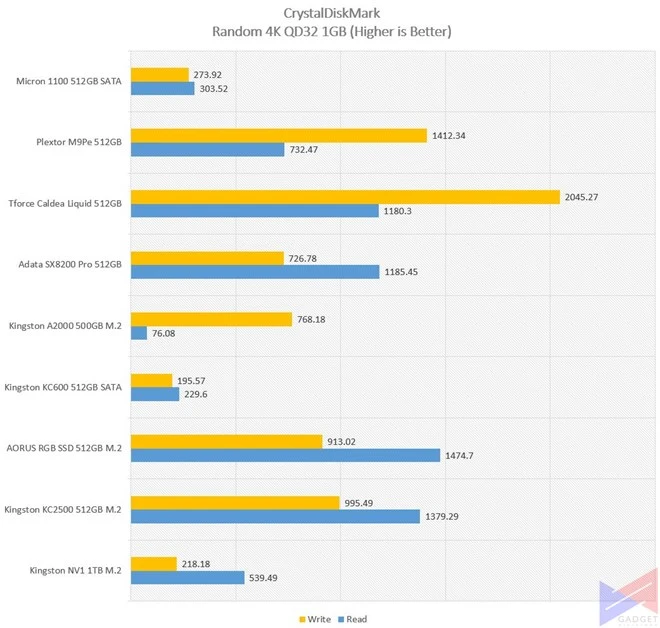

Kingston NV1 - Random 4K QD32 1GB
Random 4K QD32 1GB

Compared to Kingston’s own KC600 which is a SATA SSD, the NV1 managed to churn out significantly better sequential read and write performance, as well as random read performance, but only slightly leads on random write performance. Against other M.2 SSD’s like the popular Adata SX8200 Pro, Kingston’s offering is left trailing.

AS SSD Benchmark

This tool shows how responsive a storage device is, as well as the time that it takes to copy three types of files – Games, Programs, and ISOs.

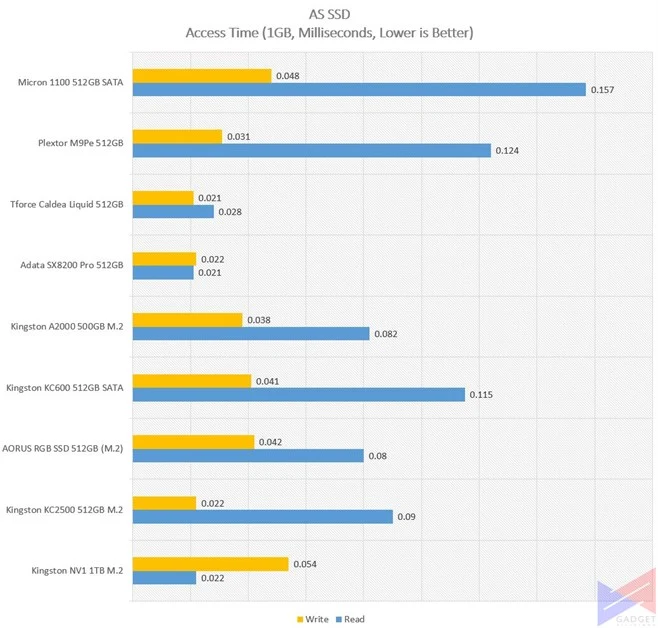

Kingston NV1 - AS SSD Access Time 1GB
AS SSD Access Tim[e 1GB

Using a 1GB file sample, the NV1 flexes its muscles, outperforming most of the other items in the list in terms of read performance, with a tie against Kingston’s own KC2500 M.2 SSD, and coming in very close to the SX8200 Pro.

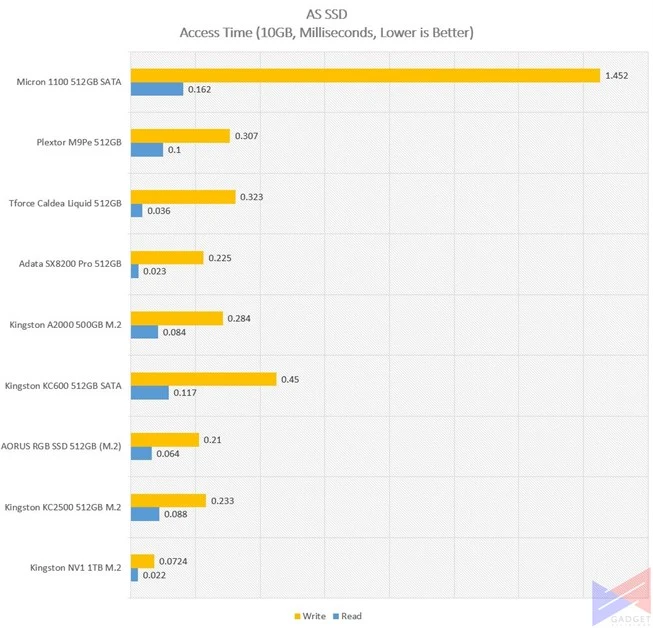

Kingston NV1 - AS SSD Access Time 10GB
AS SSD Access Time 10GB

With a 10GB file sample, the NV1 remains an exceptional performer. In fact, it tops the chart in both read and write performance.

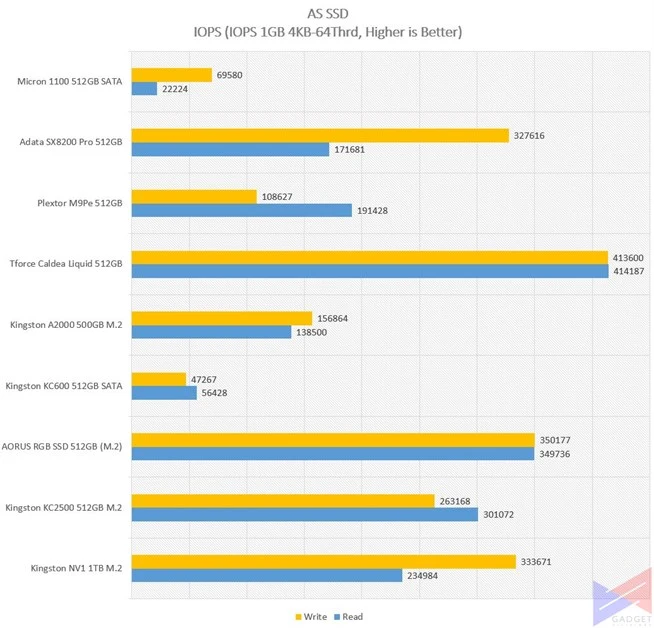

Kingston NV1 - AS SSD IOPS 1GB 4KB-64Thrd
AS SSD IOPS 1GB 4KB-64Thrd

IOPS (Input/Output Operations per Second) determines the number of inputs and outputs that an SSD can do in a short period of time. In this regard, the NV1 comes in fourth in both read and write performance.

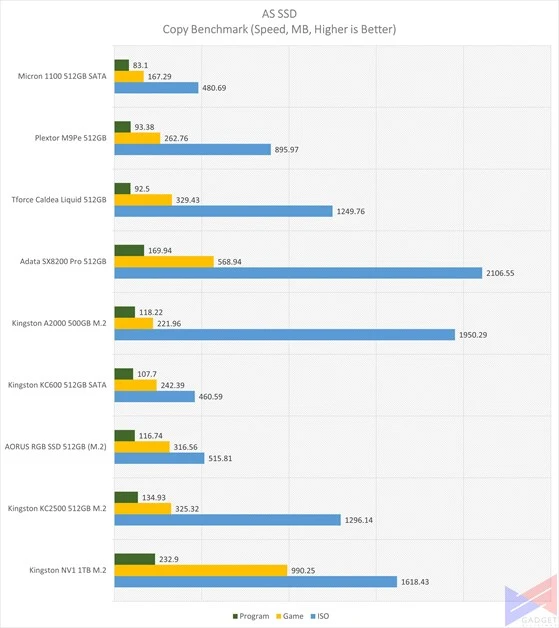

Kingston NV1 AS SSD - Copy Benchmark Speed
AS SSD Copy Benchmark Speed

Among the products in the list, the NV1 offers the best rates in for copying programs and games, while coming in third for ISOs.

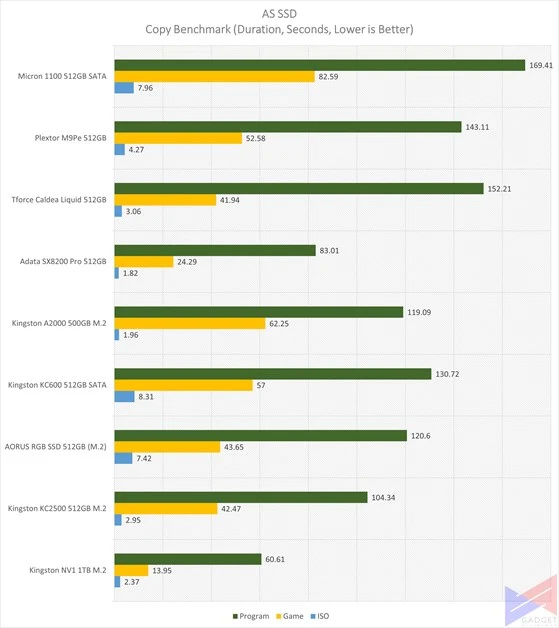

Kingston NV1 AS SSD - Copy Benchmark Duration
AS SSD Copy Benchmark Duration

As for which one can fully transfer files the quickest, the NV1 proves its mettle, topping the chart for programs and games, and coming in third for ISOs.

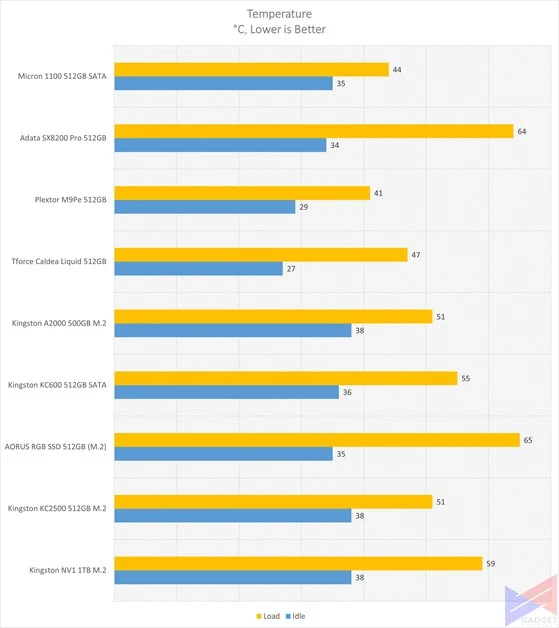

Kingston NV1 - Temps 2
Temperature

As for operating temperature, the NV1 isn’t exactly the coolest running in the list, being one of the warmest in idle, and the third warmest when running in load.

Verdict

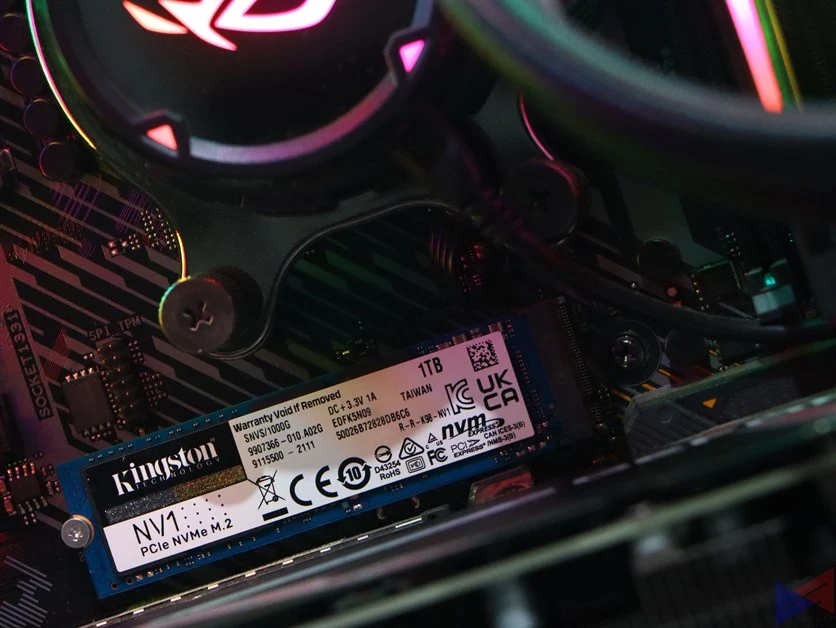

Kingston NV1 Review (20)

For those who don’t want to shell out a lot of money for a decent M.2 SSD, the NV1 was actually able to put out some good values even against a number of more expensive products like Kingston’s own KC2500 and the very popular SX8200 Pro, and topping the charts in some of the tests.

The NV1 can also be used as an external SSD using a compatible bridge box, offering great performance for a budget-friendly price compared to actually purchasing a branded portable SSD.

On the flip side, it’s not the best in terms of thermal performance, and it’s probably not a good choice if you’re transferring a lot of ISO files. Regardless, it’s still a great choice for starters.
